Description

AIM7 MAGIK-S Plan- B STAINLESS Blast Mitigation Device (BMD) for Cherry Bomb® style muzzle device

(CHERRY BOMB is a registered trademark (Registration #5050035)

(1.375×24 HUB / Bravo Compatible Modular System)

The AIM7 MAGIK Bravo Modular Assembly OC is a modular Bravo-pattern tube system constructed from strong, lightweight aluminum components. Designed for precision alignment and compatibility, each section uses the industry-standard 1.375×24 HUB / Bravo thread interface.

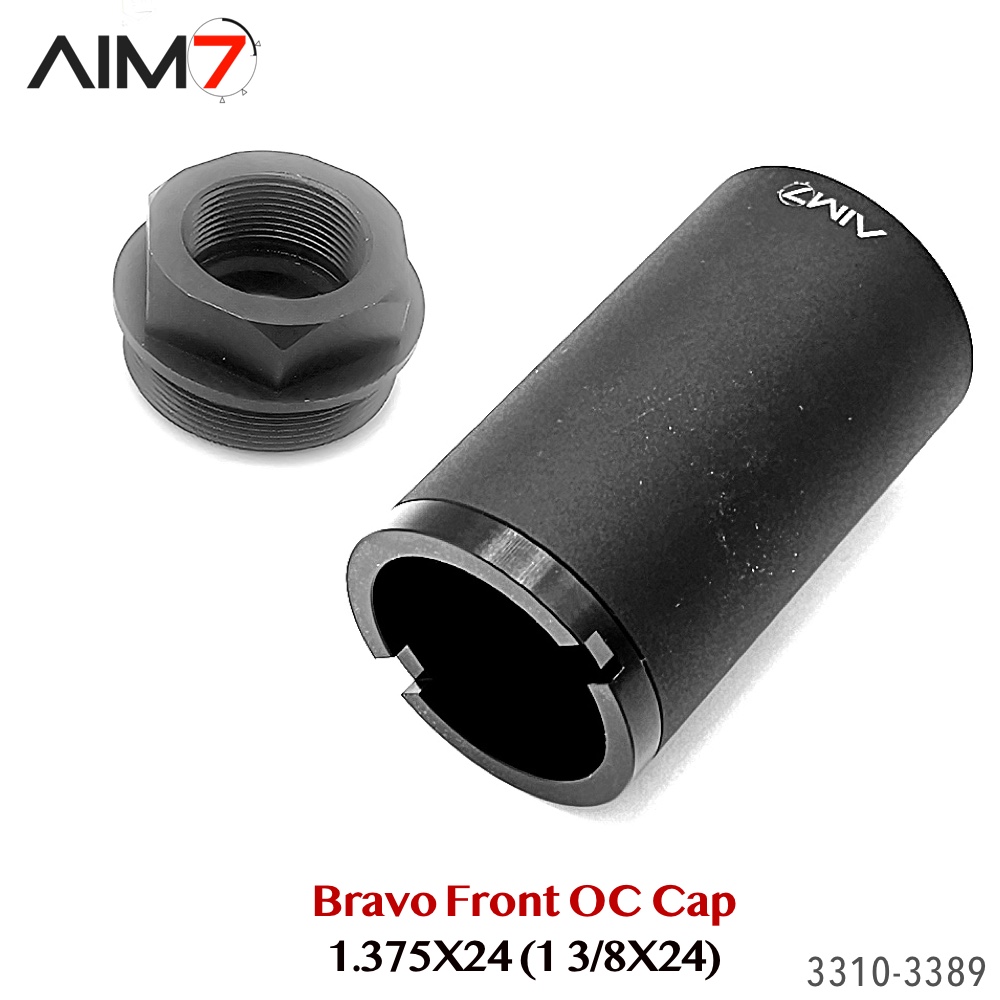

This assembly includes the MAGIK 2.5″ Tube and the Aim7 front Cap, designed for modular builds requiring an open-front configuration.

All components are fully compatible with Aim7 MAGIK, Aim7 MATRA, Aim7 BravoCone, and other Bravo-pattern modular systems.

Assembled Specifications

• Total Assembled Length: 4.00″

• Outer Diameter: 1.55″

• Thread Pattern: 1.375×24 (internal & external)

• Pattern: Bravo / HUB / 1.5″ Modular Systems

Materials

• 2.50″ Tube: stainless Steel

Assembled Benefits

• Increased internal modular space

• Precise alignment across connected sections

• Smooth internal transition using the Aim7 Bravo tube.

• Lightweight, rigid structure

• Compatible with Bravo-threaded mounts, caps, cones, and adapters

• Seamless integration with all 1.375×24 modular system components

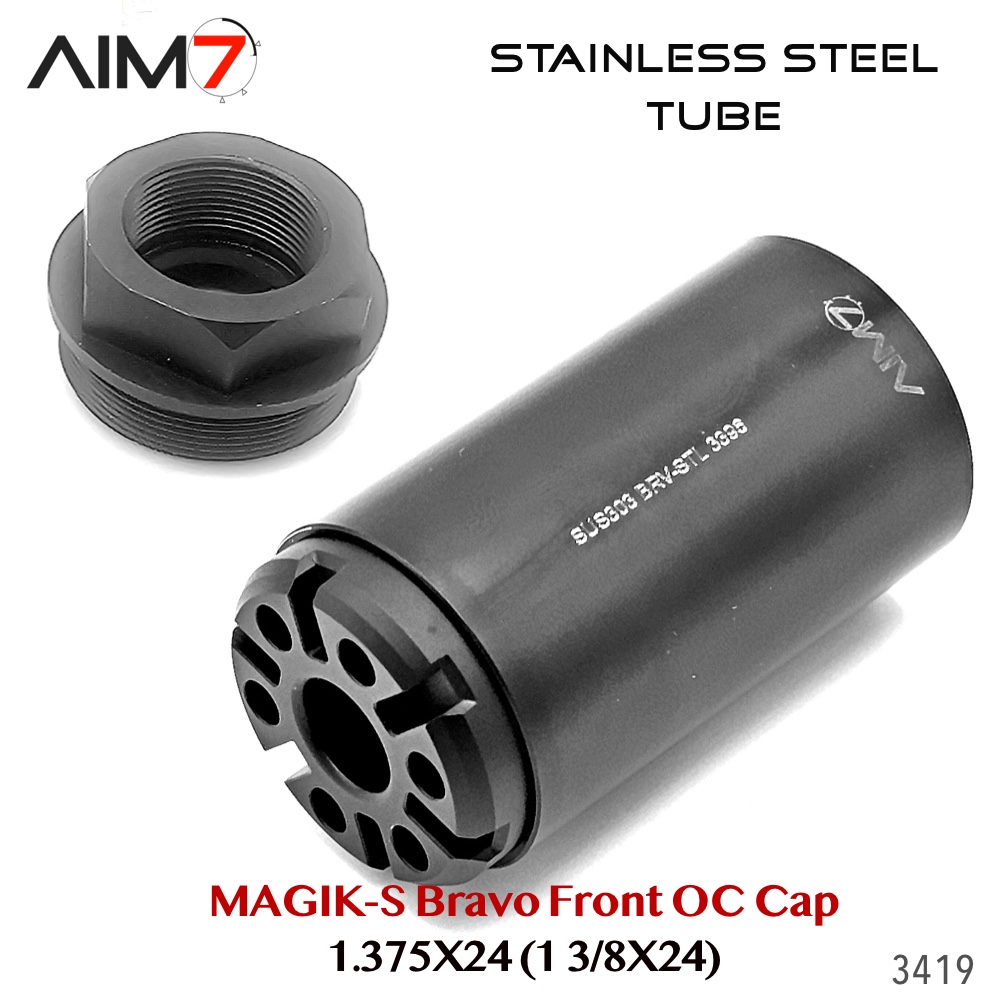

Item 1: MAGIK-S Tube – Steel Bravo/HUB Modular Tube (1.375×24) | 2.5″ Length | 1.55″ OD

The MAGIK-S Tube is a modular tube component built for strength, alignment, and broad compatibility. Machined from SUS303 stainless steel with a black finish, it offers a rugged look with good corrosion resistance.

Specs

• Length: 2.5 in

• Outer Diameter: 1.55 in

• Tube Thickness: 0.11″

• Thread Interface: 1.375×24 (1-3/8×24) Bravo / HUB standard

• Material: SUS303 Stainless Steel

• Weight: 5.1 oz

• Finish: Black

Compatibility

• Uses the industry-standard Bravo/HUB (1.375×24) interface for compatibility with many Bravo-pattern modular components and mounting systems.

• Caliber/host setup depends on the mount/adapter and bore size you choose (not included unless stated in the listing).

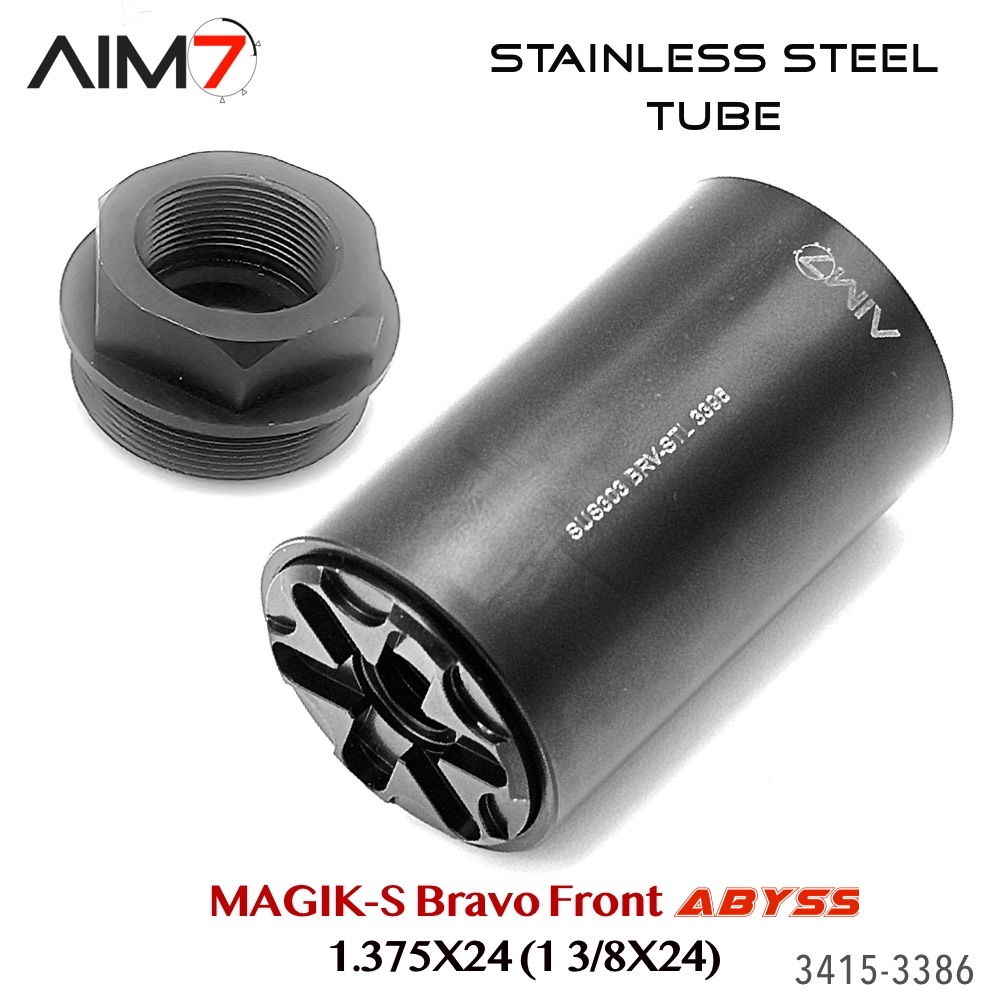

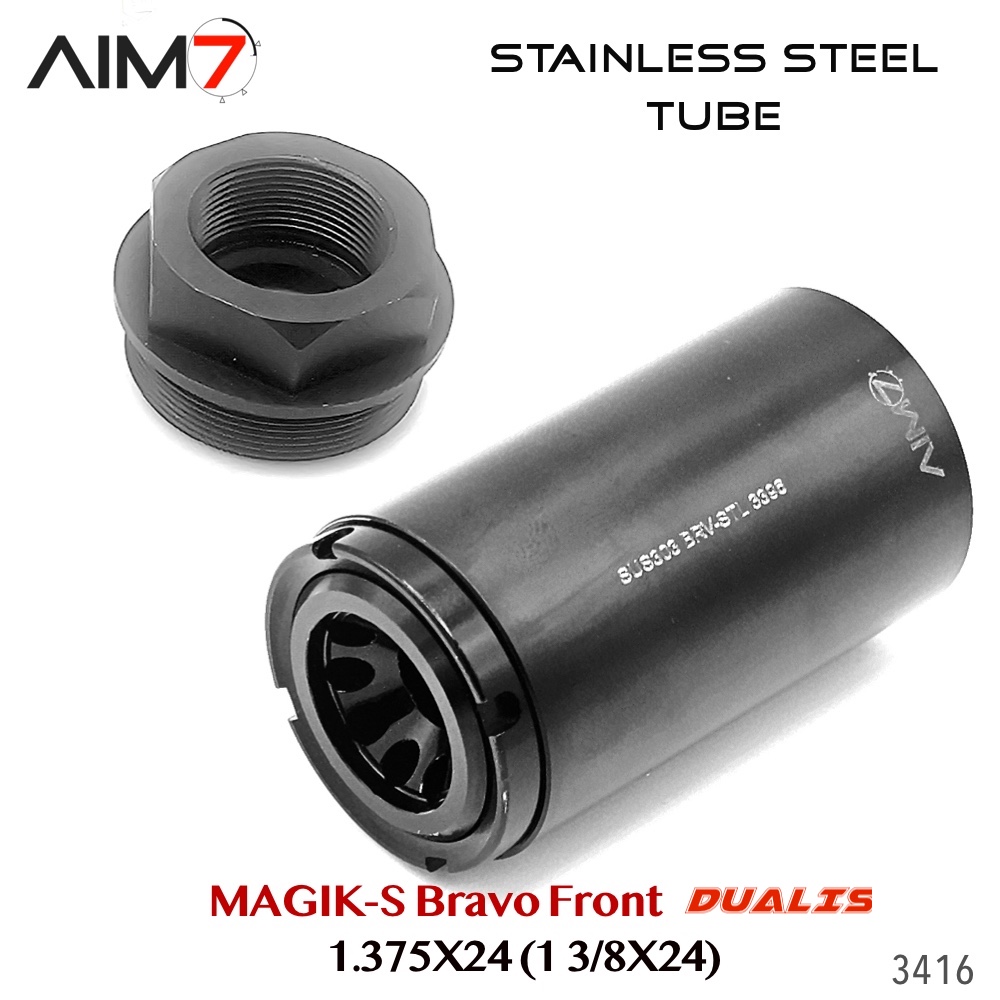

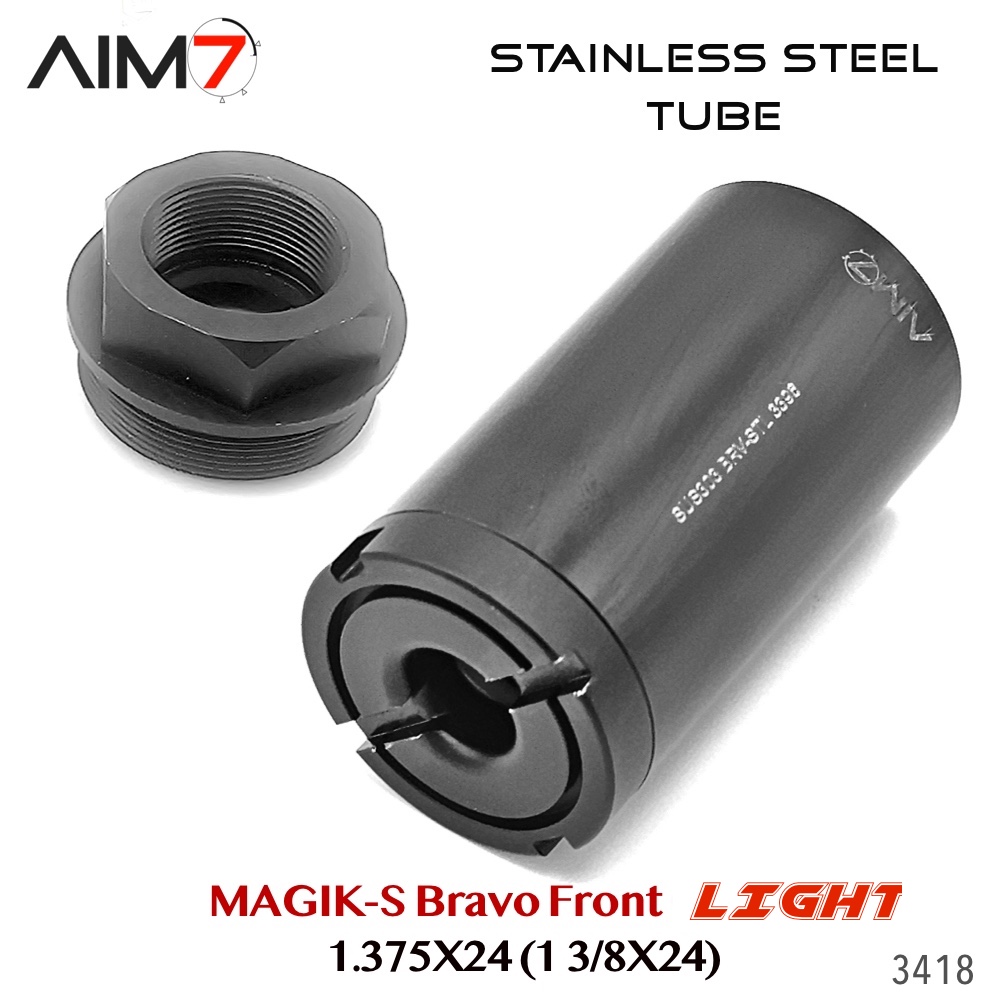

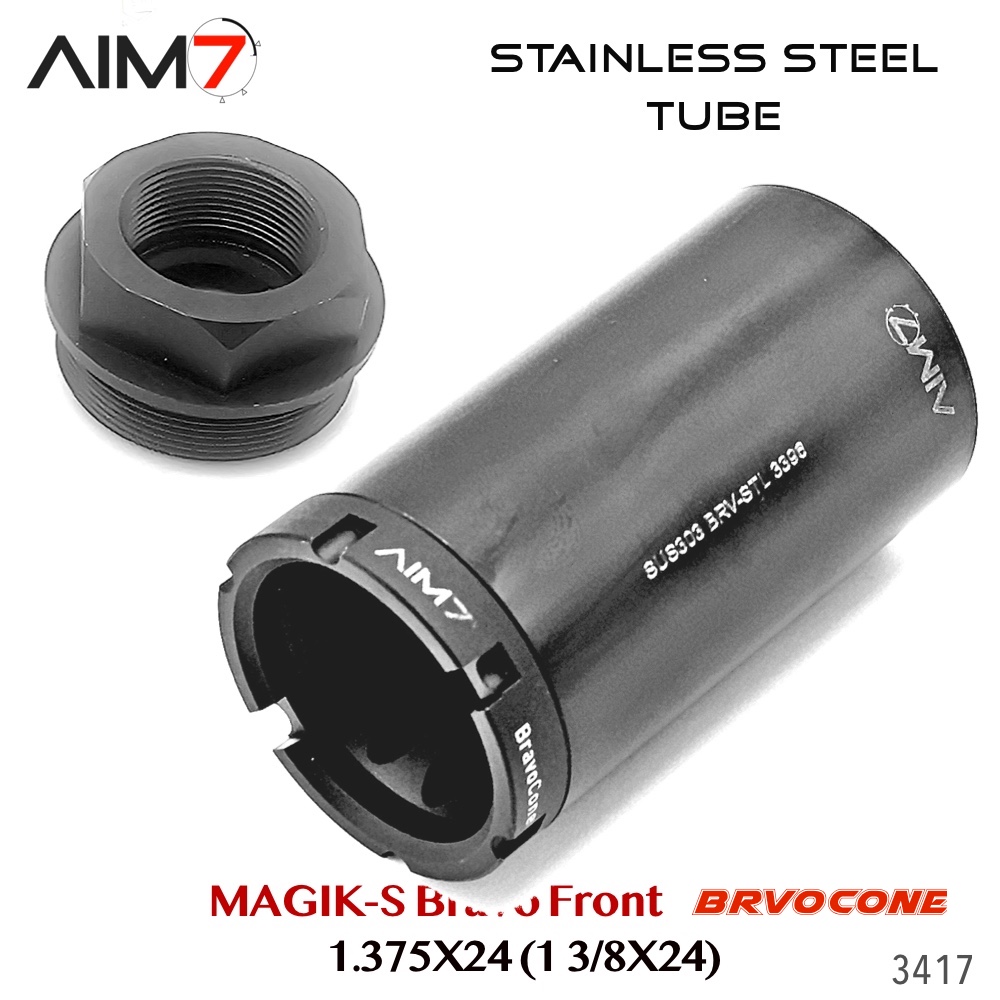

Item 2: Aim7 FRONT CAP Options (Dualis, Abbys, BravoCone, OC, Bravo Light, Bravo Ultra)

Item 3: Adapter Plan-B & Cherry Bomb® style muzzle device

• • PLAN B .900 X 24 Adapter (Outer thread Pitch 1.375 X 24)

AIM7 Q Plan B Silencer Mount .900″ X 24 (internal)

Turn almost any can into a quick-detach setup. The Plan B threads directly into your suppressor, pick Alpha 1.125 × 28, Bravo 1.375 × 24, or ASR pattern and mates to Q’s Cherry Bomb brake. Taper-on-taper contact gives repeatable POI and keeps carbon off the threads. Heat-treated 17-4 stainless steel keeps weight low, just 1.3-2.3 oz by model, while adding only about 0.2 in of length. Compatible with popular SilencerCo, Dead Air, YHM, Rugged, and CGS cans that share these hub threads. Torque it to 35 ft-lbs with the wrench that came with your silencer, click it onto the brake, and you’re shooting in two twists. No springs, shims, or gimmicks, Plan B keeps your can locked down (not compatible with Cherry Bomb XL).

Quick Hits

• SUS303 stainless – 1.3-2.3 oz
• Bravo 1.375 × 24, ASR thread .900 X 24
• Works with Q Cherry Bomb brake (sold separately)
• Adds ≈0.2 in length – secure taper lock
• Fits SilencerCo, Dead Air, YHM, Rugged, CGS suppressors

 Material Overview: SUS303 Stainless Steel

This muzzle brake is manufactured from SUS303 (equivalent to AISI 303), an austenitic stainless steel known for its ease of machining and corrosion resistance.

SUS303 is a good choice for civilian semi-automatic rifles and moderate use, but it is not intended for extreme military-grade abuse.
