AIM7 MAGIK Bravo Modular Assembly OC(OPEN FRONT)

Description

AIM7 MAGIK Bravo Modular Assembly OC (OPEN FRONT)

(1.375×24 HUB / Bravo Compatible Modular System)

The AIM7 MAGIK Bravo Modular Assembly OC is a modular Bravo-pattern tube system constructed from strong, lightweight aluminum components. Designed for precision alignment and compatibility, each section uses the industry-standard 1.375×24 HUB / Bravo thread interface.

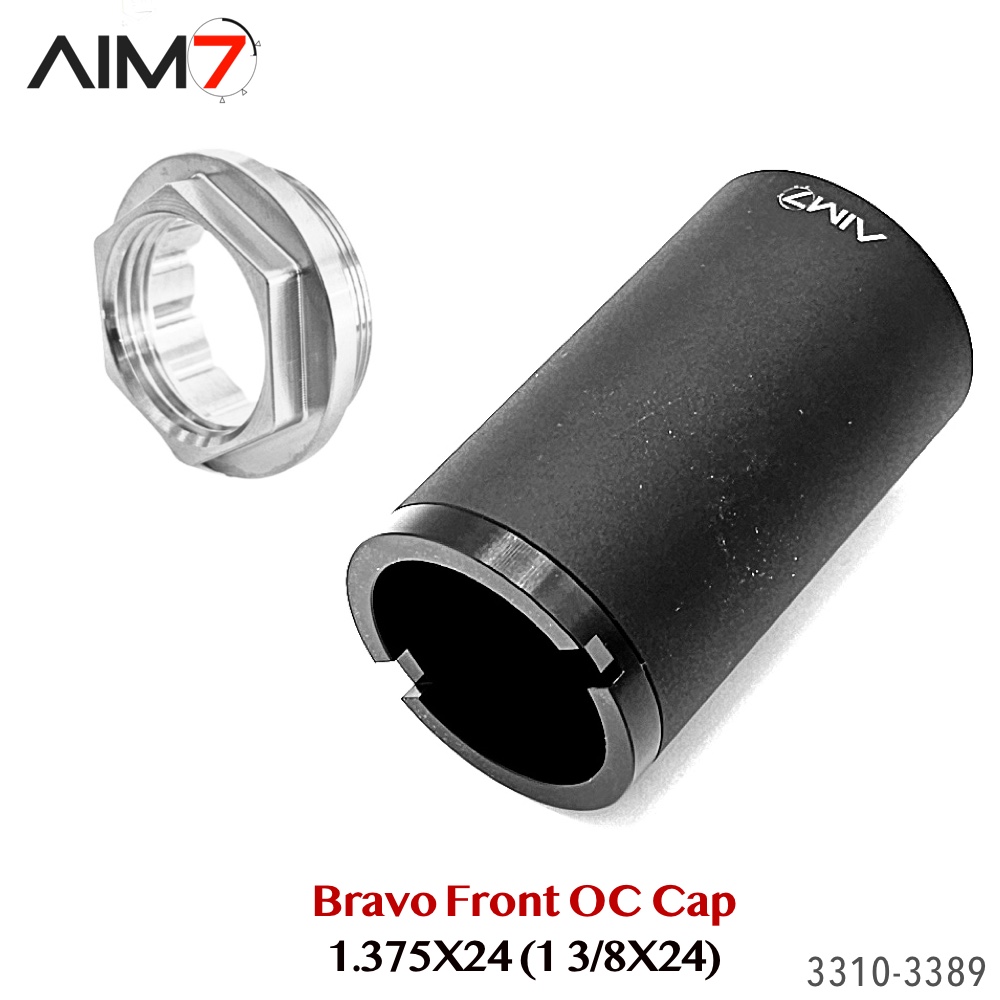

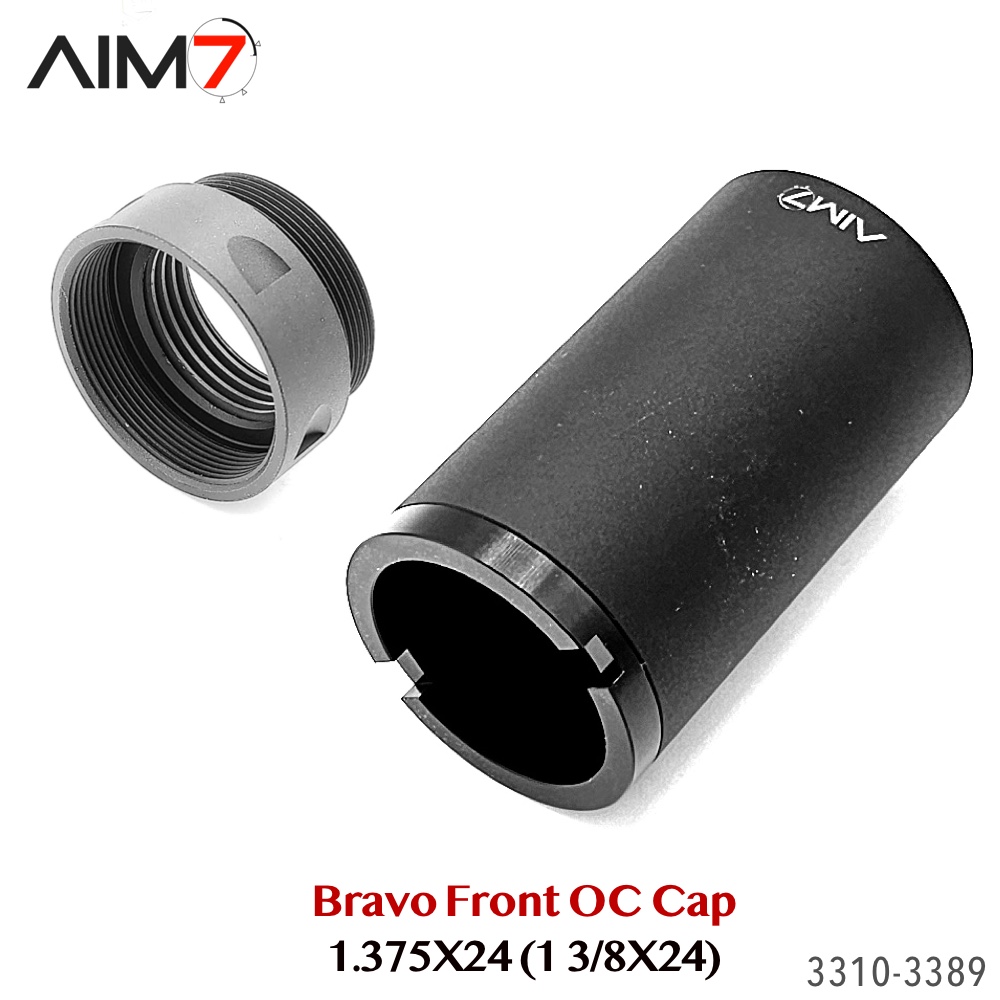

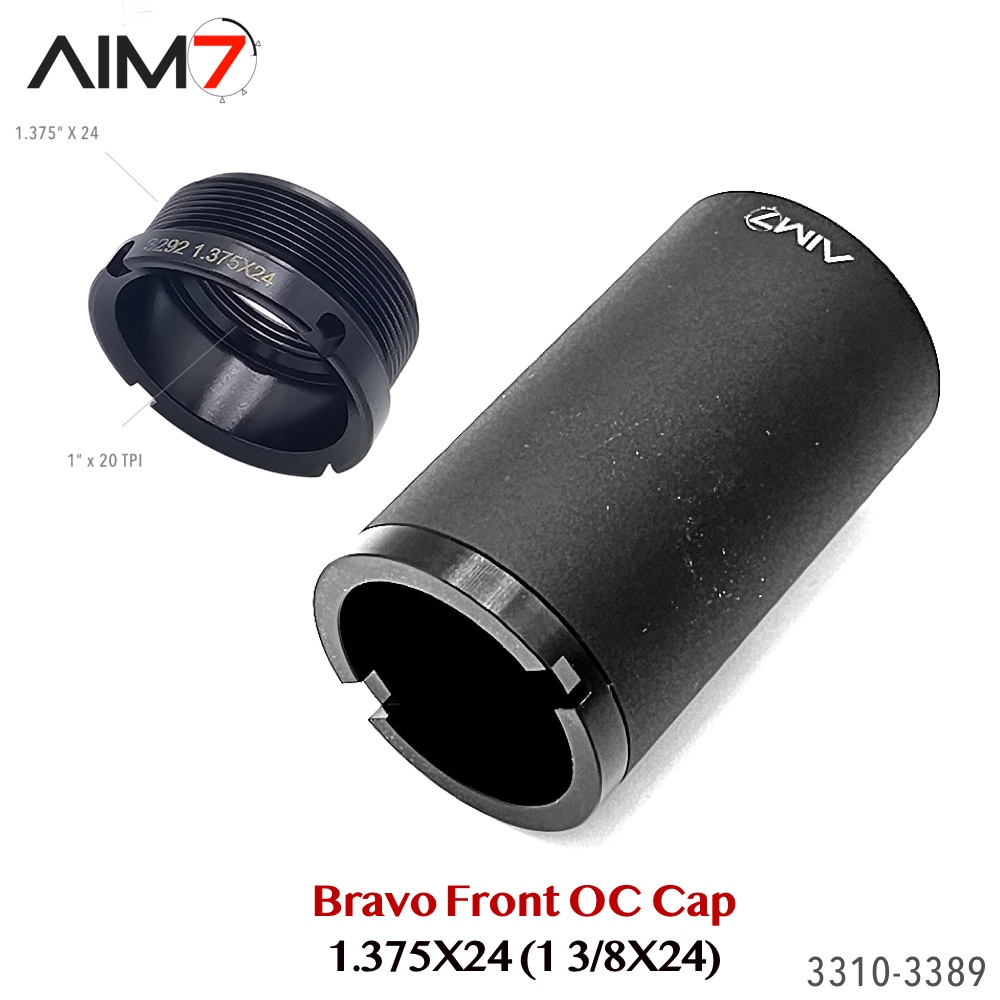

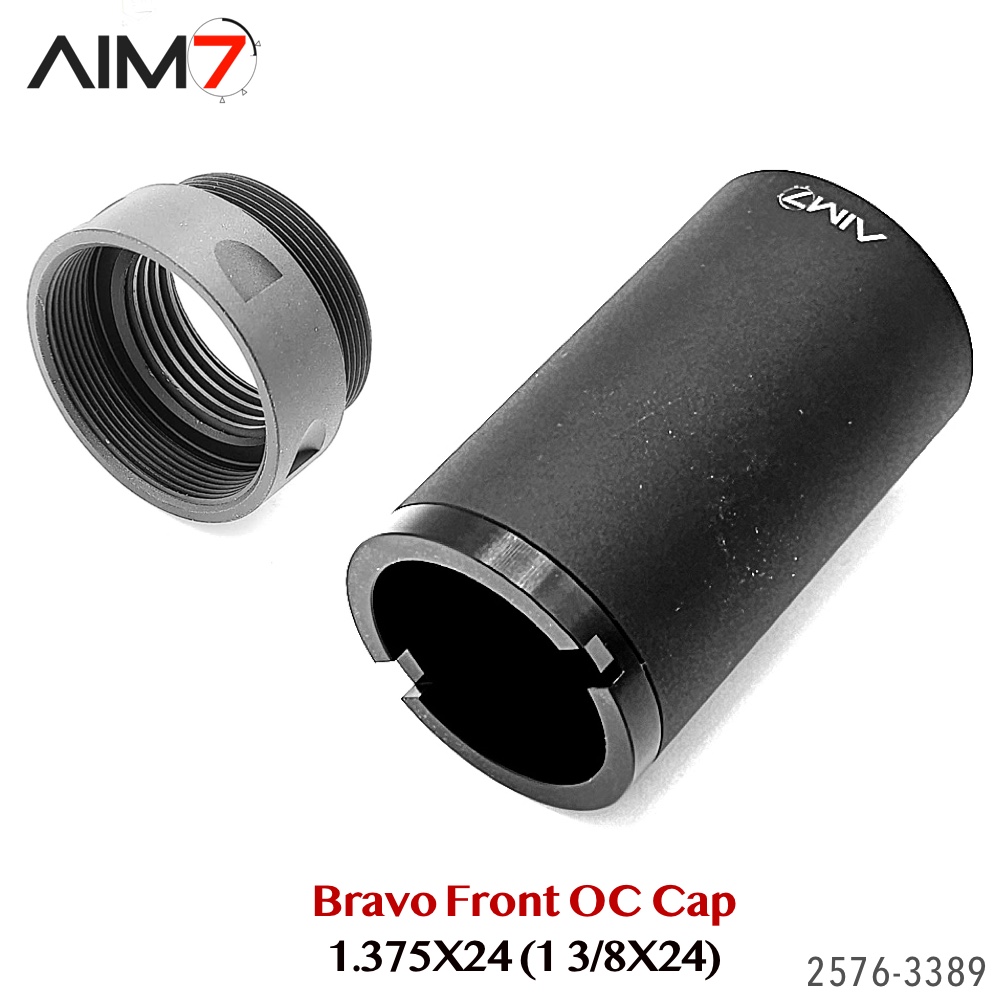

This assembly includes the MAGIK 2.5″ Tube and the Aim7 OC Open Front Cap, designed for modular builds requiring an open-front configuration.

All components are fully compatible with Aim7 MAGIK, Aim7 MATRA, Aim7 BravoCone, and other Bravo-pattern modular systems.

Adapter Options (Optional – Not Included Unless Selected)

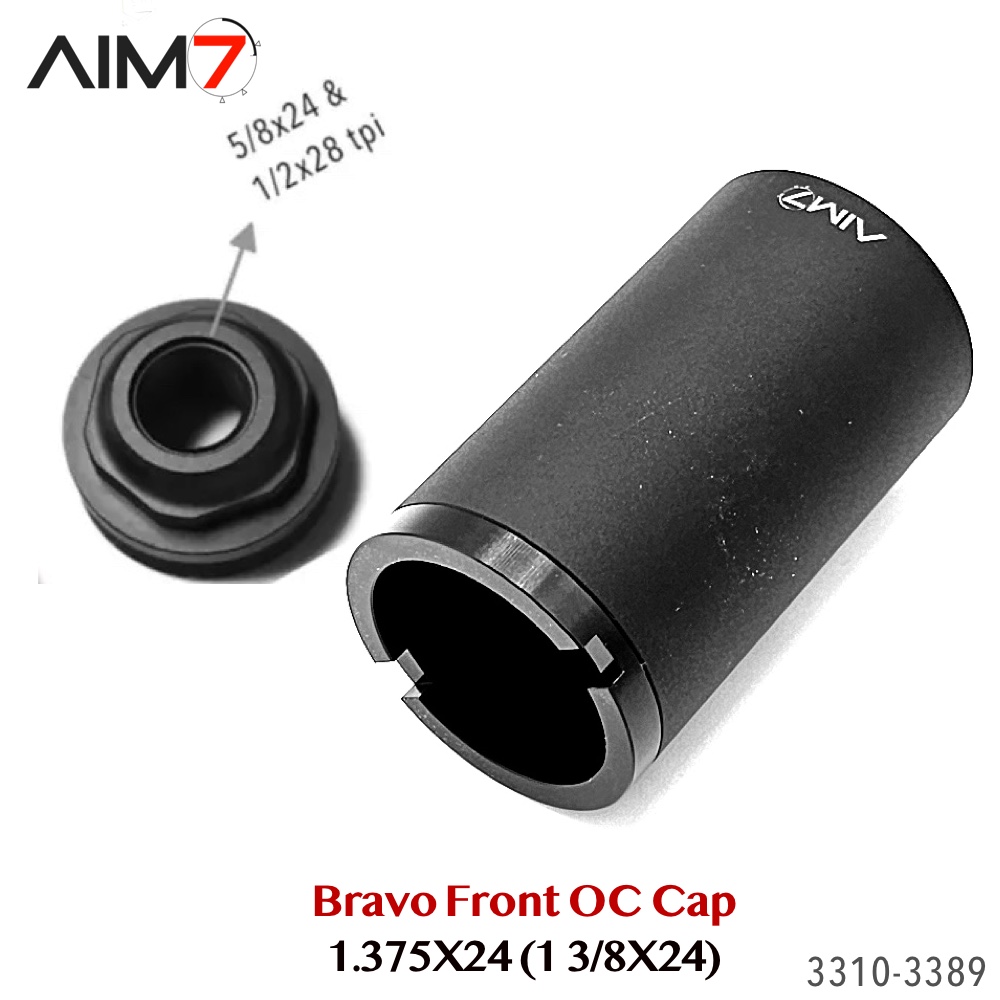

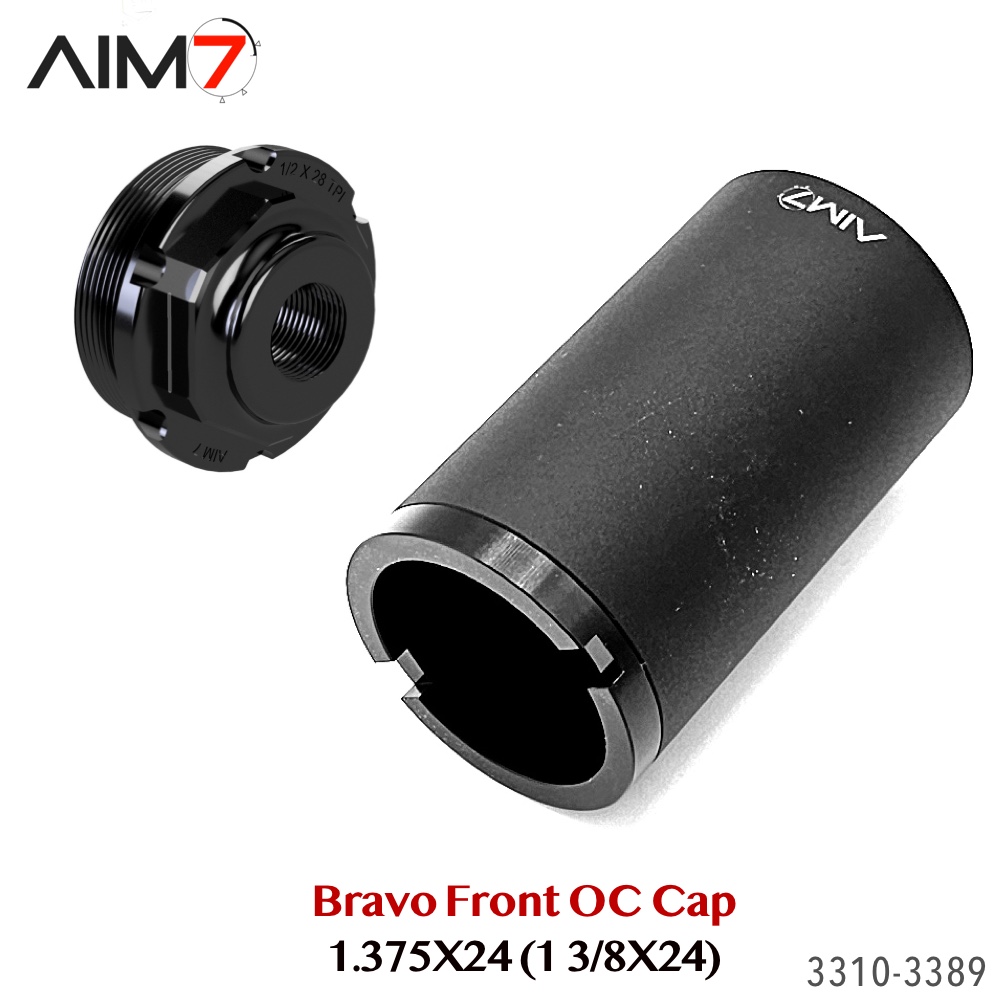

• 1/2×28 Direct Adapter

• 5/8×24 Direct Adapter

• ASR 13/16×16 Adapter

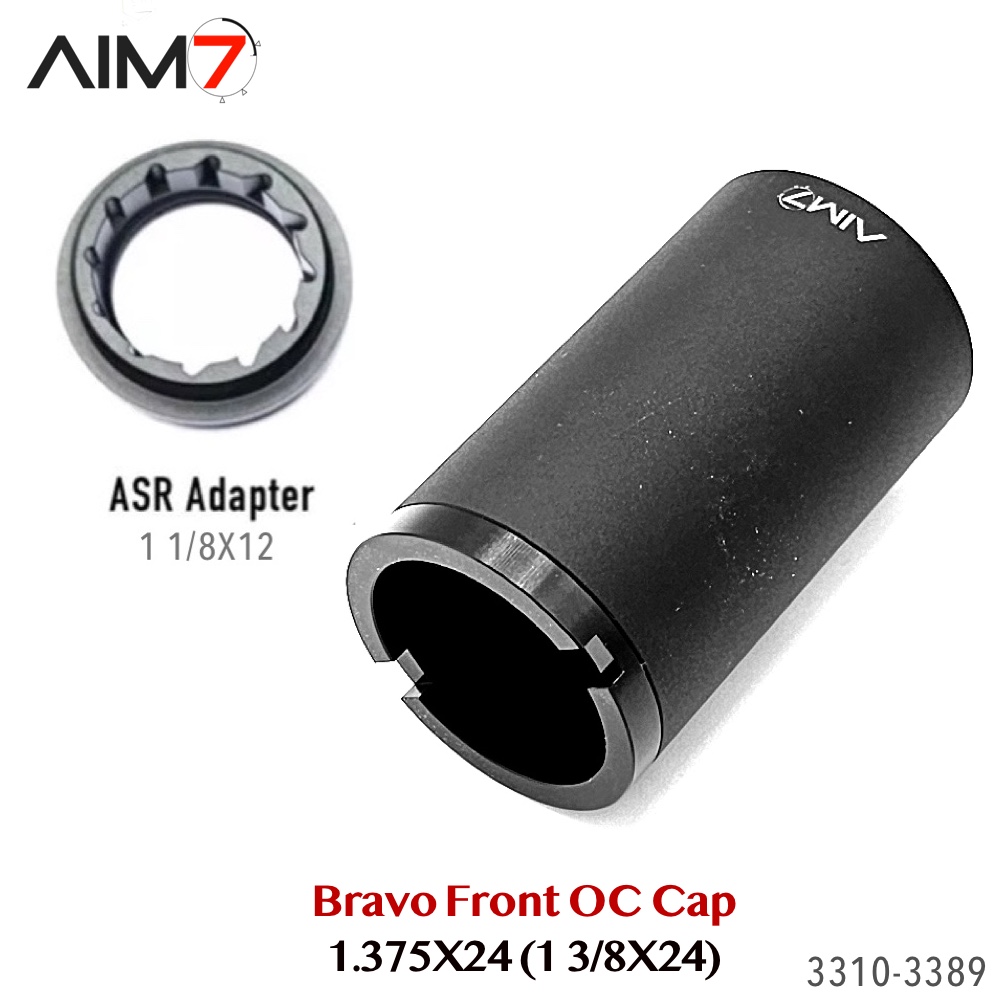

• ASR 1-1/8×12 Adapter

• Plan-A Adapter

• Plan-B Adapter

• ASR Taper Mount 13/16×16 (Can be used as barrel shroud)

• ASR Taper Mount 1-1/8×12 (Can be used as barrel shroud)

• X28 Muzzle Brake 1/2×28 (No adapter needed)

• X58 Muzzle Brake 5/8×24 (No adapter needed)

Many additional Aim7 modular adapters are available.

Assembled Specifications

• Total Assembled Length: 2.6″

• Outer Diameter: 1.55″

• Thread Pattern: 1.375×24 (internal & external)

• Pattern: Bravo / HUB / 1.5″ Modular Systems

Materials

• 2.50″ Tube: 6061-T6 Aluminum (Matte Black Anodized)

• Front Cap: Open-front design

Assembled Benefits

• Increased internal modular space

• Precise alignment across connected sections

• Lightweight, rigid structure

• Compatible with Bravo-threaded mounts, caps, cones, and adapters

• Seamless integration with all 1.375×24 modular system components

Item 1: Aim7 MAGIK Bravo Modular Tube – 2.50″ Length

6061-T6 Aluminum • 1.55″ OD • Matte Black Anodized Finish

Description

• Length: 2.50″

• Outer Diameter: 1.55″

• Internal Thread: 1.375×24 (Bravo / HUB)

• Compatible with Aim7 MAGIK modular systems and HUB-threaded components

• Lightweight design for modular builds

Caliber Thread Pattern Compatibility

(Thread compatibility only — no suppressor function claimed)

• 1/2×28: 9mm, 300 BLK subs, .30 Carbine, .45 ACP adapters

• 5/8×24: .300-cal platforms

Barrel Length & Firing Restrictions

• 7.5″ – 5.56/.223, 7.62×39

• 10.5″ – 6 ARC, 6.5 Grendel, similar cartridges

• 12.5″ – .308, 6.5 Creedmoor, 6mm Creedmoor, .243 Winchester

• 16″ – 300 Win Mag, 7mm Rem Mag, 300 PRC

• 18″ – 300 RUM, 300 Norma Mag

Item 2: Aim7 Open Front Cap for MAGIK / Bravo Tube

(1.375×24 | 1.55″ OD)

The AIM7 Open Front Cap is designed for Bravo / HUB pattern tube systems using the 1.375×24 (1-3/8×24) thread standard. Compatible with AIM7 MAGIK and other Bravo-pattern tube systems matching the listed specifications.

Specifications

• Thread: 1.375×24 (Bravo / HUB)

• Tube OD: 1.55″

• Style: Open front cap (open bore)

• Material: 6061 Aluminum

Item 3: Choose Adapter Options

(Optional accessories – not included unless selected)

• 1/2×28 Direct Adapter

• 5/8×24 Direct Adapter

• ASR 13/16×16 Adapter

• ASR 1-1/8×12 Adapter

• Plan-A Adapter

• Plan-B Adapter

• ASR Taper Mount 13/16×16 (Can be used as barrel shroud)

• ASR Taper Mount 1-1/8×12 (Can be used as barrel shroud)

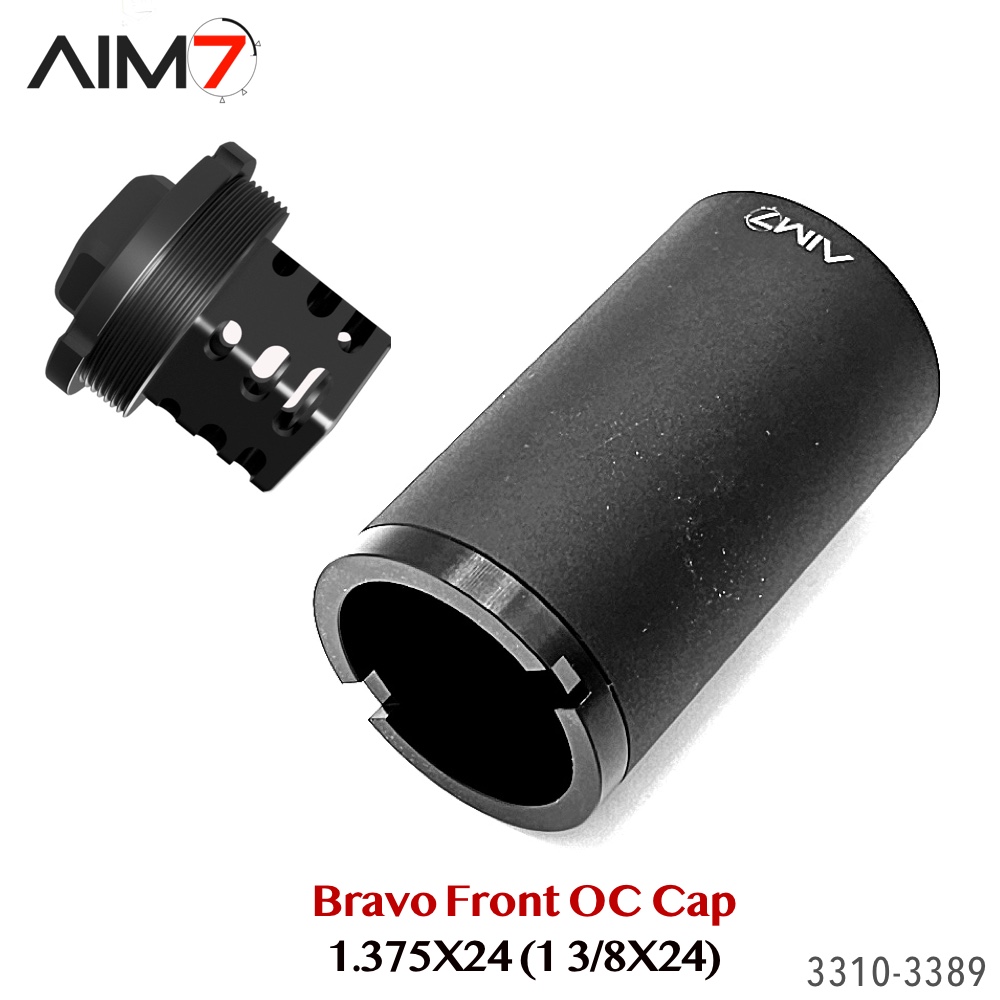

• X28 Muzzle Brake 1/2×28 (No adapter needed)

• X58 Muzzle Brake 5/8×24 (No adapter needed)

Legal Disclaimer

This product is a threaded aluminum accessory component for modular systems.
It is not a suppressor, does not reduce sound, and does not alter a firearm’s noise signature.

Buyer is responsible for verifying compatibility and ensuring compliance with all local, state, and federal laws. Improper installation or use may result in damage or injury. AIM7 assumes no liability for misuse, incorrect assembly, or use with incompatible components.
